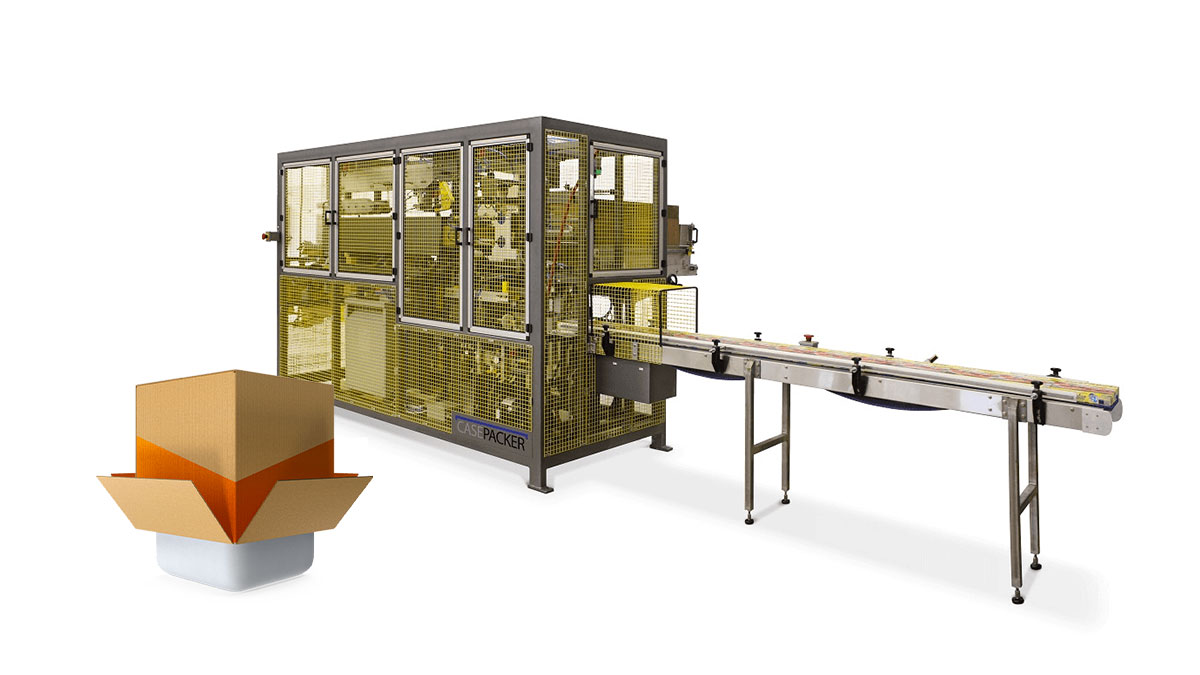

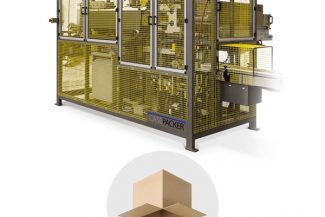

DeutschBOTTOM LOAD CASE PACKER
CASE FORMING AND LOADING MACHINE
Our compact bottom load case packing machines ( form, load and seal) are designed to completely eliminate manual labor from the case loading and sealing process. These flexible case packers are manufactured to your specific production requirements and can handle a wide variety of products while greatly increasing productivity.
How it works:
1. Automatically shape and form a corrugated case
2. Convey incoming product (containers, jugs, bottles, cartons, boxes, widgets) to the staging area
3. Stack and stage the incoming product
4. Once the incoming product is stacked per your pack pattern, we will automatically load the case from the bottom in order to ensure the most delicate transfer possible.
5. When the case is filled, the bottom and top flaps of the corrugated case will be folded
6. Folded case flaps will then either be glued or tapes
7. Voila! An automatically case packed finished product is ready to ship to your customer
Commonly used for products requiring careful handling and loading into corrugated cases including delicate baked products, heavy cartons, containers with liquid, widgets and more.
Videos
- Product staging and loading area
- Servo loading mechanism
- Case erector
- Quick size change-over
- Heavy duty, welded tubular steel frame
- Venturi vacuum technology
- Omron PLC
- Color touch screen user interface allowing adjustment and full access to all functions & timing of machine
- 2” or 3” wide tape head or Nordson ProBlue glue system
- Low product and no product detectors on infeed
- Interlocked safety gates or doors
- Auto-idler
- Light stack and audible low hopper alarm
- Utility blow out air line with nozzle
- All electric controls
- STEEL-IT silver grey paint with all moving parts painted bright yellow
- 24 VDC control voltage
- On-line detailed operation manual accessible through HMI
- Product staging and loading area
Our All In One is suited for all industries as your go to case and tray packing machine:
- Automotive & Hardware
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Frozen Food
- Fruit
- Home Goods & Furniture
- Meal Kit
- Meat & Poultry
- Nutraceutical & Pharmaceutical
- Pet Food
- Powder
- Snack Food
- Vegetable
and many more industry applications.
- Specifications
- Product staging and loading area
- Servo loading mechanism
- Case erector
- Quick size change-over
- Heavy duty, welded tubular steel frame
- Venturi vacuum technology
- Omron PLC
- Color touch screen user interface allowing adjustment and full access to all functions & timing of machine
- 2” or 3” wide tape head or Nordson ProBlue glue system
- Low product and no product detectors on infeed
- Interlocked safety gates or doors
- Auto-idler
- Light stack and audible low hopper alarm
- Utility blow out air line with nozzle
- All electric controls
- STEEL-IT silver grey paint with all moving parts painted bright yellow
- 24 VDC control voltage
- On-line detailed operation manual accessible through HMI
- Product staging and loading area
- Ideal Markets
Our All In One is suited for all industries as your go to case and tray packing machine:
- Automotive & Hardware
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Frozen Food
- Fruit
- Home Goods & Furniture
- Meal Kit
- Meat & Poultry
- Nutraceutical & Pharmaceutical
- Pet Food
- Powder
- Snack Food
- Vegetable
and many more industry applications.
